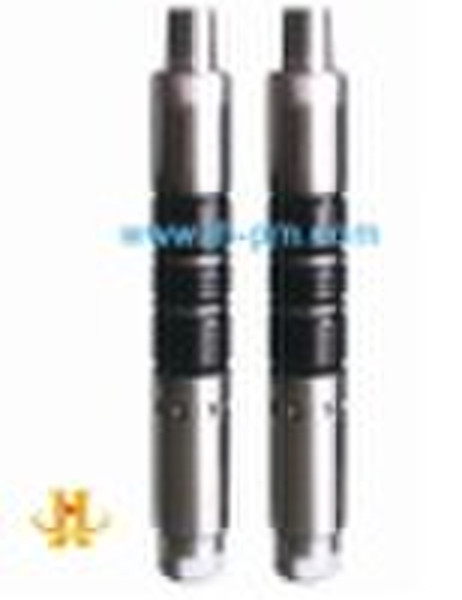

Packers

Jinghong Petroleum Equipment CorporationOur main product: 1. Top Drive Drilling System, 2. PC Pump & Ground Driving System, 3. Series of Down-hole tools , 4. Solid Expandable Tubular Machining and Engineering service.--------------------------------------------Features: 1. This packer has a function to prevent from midway sealing, what makes the success rate of running-in reach 100%. 2. A special structure is used. It has an advanced feature of repetitive sealing of flush well. 3. It is short and easy to adjust tubing string when subdivided layer water injection.Specification: Model Y341-95FK Y341-114FK Y341-(134-142)FK Y341-(142-148)FK Total Length (mm) 1037 652 702 752 Setting Pressure 18MPa 18MPa 18MPa 18MPa Work Pressure 15Mpa 15-25MPa 15-25MPa 15-25MPa Work Temperature 90-120 90-120 90-120 90-120 Min. Inter Dia. φ48mm φ50mm φ62mm φ62mm Max. Outer Dia. φ95mm φ114mm φ134-142mm φ142-148mm Start pressure of Well flushing piston <=2.5MPa <=2.5MPa <=2.5MPa <=2.5MPa Well-flushing flow rate >=25m3/h >=35m3/h >=50m3/h >=50m3/h Release Load 30-50KN 40-60KN 50-70KN 60-80KN Adaptive Casting Size 4 1/2 inch 5 1/2 inch 6 5/8 inch 7 inch ---------------- ------------------- WEB: www jh-pm com
